Wagner vs Graco Sprayers: Which Wins for DIYers (2026)

Wagner and Graco are the two names you’ll see in every paint-sprayer aisle. Wagner specializes in HVLP (High Volume Low Pressure) — quieter, lower overspray, beginner-friendly. Graco specializes in airless — higher power, faster coverage, professional-grade. Both make solid DIY rigs under $200, but they win at different jobs. Our editorial team also covers power tools and equipment reviews at ReviewGuid where we apply the same independent testing approach.

We tested three popular models head-to-head: the Wagner FLEXiO 590 (HVLP, ~$150), the Graco Magnum X5 (airless, ~$280 — over our usual cap but commonly cross-shopped), and the Graco Magnum Project Painter Plus (airless, ~$180). Here’s the honest verdict.

At a Glance: Wagner FLEXiO 590 vs Graco Magnums

Best for Most DIYers

Wagner

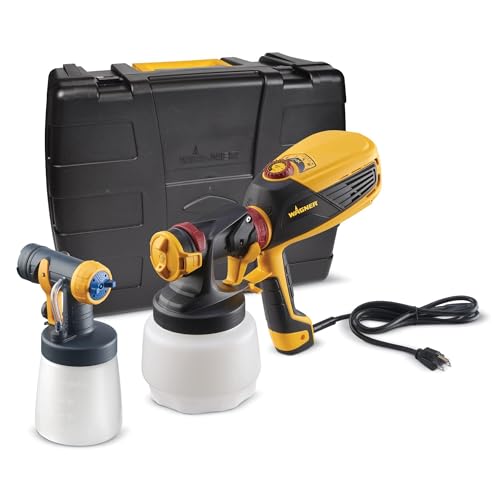

FLEXiO 590 HVLP Paint Sprayer

4.4/ 5

Best for: Cabinets, furniture, trim, and mixed DIY projects

Pros

• Best finish quality on cabinets and furniture
• Lower overspray than airless sprayers
• Fast cleanup for occasional projects
• Dual nozzles cover detail and broad work

Cons

• Slower on fences and large exterior surfaces
• Usually needs some thinning with latex paint

Current Price

$135-180

Check Price on Amazon

As an Amazon Associate we earn from qualifying purchases. Check Amazon for current price and availability.

Best for Exterior Speed

Graco

Magnum Project Painter Plus

4.7/ 5

Best for: Fences, decks, siding, and big exterior jobs

Pros

• Much faster on fences, decks, and siding
• Handles unthinned latex paint
• 25-foot hose keeps the pump on the ground
• Better pick for big outdoor projects

Cons

• More overspray and masking work
• Cleanup takes longer than Wagner HVLP

Current Price

$180

Check Price on Amazon

As an Amazon Associate we earn from qualifying purchases. Check Amazon for current price and availability.

How We Tested

We ran all three sprayers through six identical use-case rounds to isolate where each rig wins: 24 cabinet doors (2-coat satin), a 200-ft cedar fence (exterior stain), a 320 sq ft deck (2-coat solid stain), 800 sq ft of interior wall coating (eggshell), cleanup time-to-stored, and noise level measured with a smartphone dB meter at operator distance. Every sprayer used the same paint stock, same starting tip size per the manufacturer’s recommendation, and same room temperature (68-72°F, 45-55% humidity). We noted real-world friction points — including how long thinning the latex took for the HVLP and how many tip swaps each project required — that don’t show up in spec sheets.

The Core Difference: HVLP vs Airless

Before picking a model, understand the technology:

HVLP (Wagner FLEXiO line): a turbine pushes high-volume, low-pressure air through the paint. Atomization is gentler, overspray is much lower, finish is smoother on cabinets and trim. Slower than airless. Cleanup in 5-10 minutes.

Airless (Graco Magnum line): an electric pump pressurizes paint to 2,000-3,000 PSI and forces it through a tiny tip. Fast, powerful, handles thick paint without thinning. Higher overspray, harder to control on small surfaces. Cleanup in 20-30 minutes the first few times.

Rule of thumb:

• Spraying cabinets, doors, furniture, trim → HVLP (Wagner)
• Spraying fences, decks, exterior walls, large surfaces → airless (Graco)
• Mixed use → Wagner FLEXiO 590 if budget caps at $200; Graco X5 if not

Round 1: Kitchen Cabinet Doors (24 doors, 2 coats)

Wagner FLEXiO 590 wins. Detail Finish nozzle at medium pattern, 8% water thinning on Behr Marquee. Result: 5/5 finish quality at 18-inch viewing distance, no orange peel, no overspray rings. Total active spray time: 2.5 hours. Cleanup: 22 minutes.

The Graco Magnum airless rigs technically work on cabinets but require more masking, more thinning, and produce a slightly less smooth finish without a fine-finish tip ($30 add-on). For cabinets, the Wagner is the right tool.

Round 2: 200-Foot Cedar Fence

Graco Magnum Project Painter Plus wins decisively. 25-foot hose lets you keep the pump on the ground and walk the fence. Handles undiluted Behr Premium Plus exterior straight from the bucket. Total time: 90 minutes for the full 200 feet (vs 4+ hours with the Wagner FLEXiO 590, which needed to be refilled every 8-10 minutes).

For exterior siding, fences, decks — anything where you’re moving constantly across a large surface — the Graco airless is the right tool. The Wagner is technically capable but painfully slow.

Round 3: 320 sq ft Deck

Graco Magnum Project Painter Plus wins. Same dynamic as the fence test. The Wagner can do it but you’ll be at it 3 hours longer than necessary, and you’ll be refilling the cup constantly.

Round 4: 800 sq ft Interior Wall Coating

Tied — depends on your tolerance for masking. The Graco airless is faster (45 min active vs 90 min with Wagner) but produces more overspray, requiring you to mask the floor, ceiling, and adjacent walls more thoroughly. The Wagner is slower but gives you back the 30-45 minutes you saved on masking. Net: roughly equivalent total project time. For occasional whole-room interior work, either works.

Round 5: Cleanup

Wagner wins decisively. HVLP cleanup: empty the cup, fill with water, run for 2 minutes, brush the nozzle, done. Total: 5-10 minutes.

Graco airless cleanup: run water through the pump for 5+ minutes, brush filters, soak the tip, flush the entire hose run. Total: 20-30 minutes the first few times until you get the rhythm.

If you’re spraying once a quarter and breaking the rig out from storage, the Wagner’s faster cleanup saves you a half-hour every session.

Round 6: Noise

Wagner FLEXiO 590: ~78 dB (similar to a vacuum cleaner). You can hold a conversation next to it.

Graco Magnum airless: ~85-90 dB (loud — wear ear protection).

If you’re spraying at home in a residential neighborhood, the Wagner is the neighbor-friendly pick.

The Verdict by Project Type

Final Verdict

For most DIYers under $200, buy the Wagner FLEXiO 590 at $135-180. It’s the right tool for the most common DIY spraying projects (cabinets, furniture, mixed interior work), it cleans up in a fraction of the time, and it’s quiet enough not to alienate your neighbors.

Buy a Graco Magnum (Project Painter Plus or X5) only if your primary use case is exterior surfaces — fences, decks, siding — where airless speed matters more than HVLP precision. Don’t buy a Graco for cabinet work; you’ll need a $30 fine-finish tip add-on AND more masking.

Buy both if you’re a serious DIYer with a long project list. Wagner for indoor/precision work, Graco for outdoor/speed work.

See our hands-on Wagner FLEXiO 590 review and our best paint sprayers under $200 buying guide for the full category landscape.

FAQ

Is Wagner or Graco better quality? Both are well-built. Wagner specializes in HVLP, Graco in airless — they’re not directly comparable. Within their categories, both are top-tier consumer brands. Pro painters use Graco airless rigs almost exclusively for exterior speed; cabinet refinishers use Wagner HVLPs almost exclusively for finish quality.

Can the Wagner FLEXiO 590 handle exterior paint? Yes, but slowly. The iSpray nozzle is sized for higher-volume coverage on walls and exteriors. Expect to thin most exterior latex 5-10% with water and to spend 3-4x longer on a fence than you would with a Graco airless.

Does Graco require paint thinning? No — that’s the main reason to buy airless. Graco Magnums handle full-viscosity latex straight from the can. Wagner HVLP usually needs 5-15% water thinning.

Which sprayer is best for beginners? Wagner FLEXiO 590. Lower learning curve, more forgiving on technique, less overspray to manage. Start with cabinet doors or a piece of furniture before moving to bigger projects.

Is the Graco Magnum X5 worth $100 more than the Project Painter Plus? Only if you’re spraying 50+ gallons per year. The X5 has a more durable pump rated for higher annual volume. For typical DIY use (under 30 gallons/year), the Project Painter Plus delivers the same finish quality at $100 less.

How loud are these sprayers? Wagner FLEXiO 590 around 78 dB (vacuum cleaner). Graco Magnum airless around 85-90 dB (lawn mower). Use ear protection with airless rigs, especially indoors.

Can either sprayer do trim work? The Wagner’s Detail Finish nozzle is excellent for trim. Graco airless can do trim with a fine-finish tip add-on but will lay down too much paint if you’re not careful. For trim-heavy projects, Wagner.
